Ellisys Bluetooth Vanguard - Technical Data

Download the datasheet »
Download the software »

System Specifications

Bluetooth Capture Characteristics

  • Ellisys Rainbow™: Industry's first wideband concurrent capture of all Bluetooth channels. Introduced in 2010.
  • Diversified Capture with two full concurrent capture paths
  • Frequency band: 2.402-2.480 GHz
  • Sensitivity range: From -90 to +15 dBm
  • Gain: Programmable from -30 to +30 dB
  • Modulations: All BR/EDR/LE modulations (GFSK 1/2Mbps, p/4-DQPSK, 8-DPSK)
  • Baseband: Support of Bluetooth 5, upgradeable by software. Preliminary support of non-released specifications available.

Wi-Fi Capture Characteristics

  • IEEE 802.11 a/b/g/n/ac (3 streams)
  • Channel width 2.4GHz: 20MHz, 40MHz
  • Channel width 5GHz: 20MHz, 40MHz, 80MHz
  • 11n MCS: 0 to 23 (up to 3 streams)
  • 11ac MCS: 0 to 9 (up to 3 streams)
  • Guard Interval: 800ns (long) and 400ns (short)
  • Frame encoding: BCC, LDPC, STBC, Greenfield
  • Max AMPDU size: 65,535 bytes
  • Timing accuracy: 125 ns

WPAN Capture Characteristics

  • IEEE 802.15.4-2011
  • Channels: All 16 2.4 GHz channels (11 to 26)
  • Data rate: 250 kbps
  • Modulation: O-QPSK
  • Timing accuracy: 125 ns

Logic Capture Characteristics

  • Maximum bandwidth: 20 MHz
  • Sampling precision: 5 ns
  • Supported input voltage: 1.8 to 3.3V

HCI Capture Characteristics

  • USB transport: Low, Full, and High Speed, with automatic detection
  • UART transport: Up to 8 Mbit/s, automatic detection of all parameters
  • SPI transport: Up to 8 Mbit/s, automatic detection of all parameters

Low-speed Serial Capture Characteristics

  • UART: Up to 8 Mbit/s automatic detection of all parameters
  • SPI: Up to 8 Mbit/s, automatic detection of all parameters
  • I2C: Up to 1 Mb/s
  • SWD: Up to 8 Mb/s

Timing

  • Clock: ±10ppm frequency accuracy over -10 to +60 degrees Celsius range
  • BR/EDR/LE timestamp accuracy: ±125ns
  • Wi-Fi timestamp accuracy: ±125ns
  • WPAN timestamp accuracy: ±125ns
  • USB HCI timestamp accuracy: ±16.7ns
  • Logic timestamp accuracy: ±5ns

Embedded Memory

  • 512 MB of FIFO memory
  • Data is stored in highly optimized format
  • Analyzed data is uploaded in real time

Front-Panel Indicators

  • Power: unit powered on
  • Operating: unit performing requested task
  • Activity: blinks when wireless or wired activity detected

Front-Panel Connectors

  • RF1: Shared between Bluetooth and Wi-Fi
  • RF2: Shared between Bluetooth and Wi-Fi
  • RF3: Shared between WPAN and Wi-Fi
  • USB HCI: USB 2.0 Standard-A and Standard-B
  • Logic: supports UART / SPI HCI, WCI-2, generic I2C / UART / SPI / SWD and logic analysis
  • SDIO: Optional, for external trace storage and unit recovery

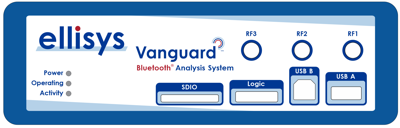

BV1 Front

Rear-Panel Connectors

  • Computer: USB 3.1 Gen 1 Type-C
  • Ethernet: 1GbE, PoE+
  • Power: 12-24 VDC
  • Trigger: SMA in and out, 50 Ω, 3.3 VDC
  • Clock IN: SMA, 50 Ω, 3.3VDC, 10 MHz
  • Clock OUT: SMA, 50 Ω, 3.3VDC, 10 MHz
  • Earth: Optional, to ground the unit

BV1 Back

Power Inputs

  • DC input (12-24 V)
  • USB Type-C Power Delivery
  • Power-over-Ethernet (PoE+)
  • Backup Battery (22 Wh)

Power Adapter

  • Input: 100-240 VAC
  • Output: 24 VDC
  • Power: 40 W
  • Plug: 5.5 x 2.1 x 12 mm barrel straight
  • Safety: CB, TUV, UL, CCC, PSE
  • EMI: CE, FCC, VCCI, RCM

Enclosure

  • 180 x 170 x 58 mm (7.1 x 6.7 x 2.3'')
  • 1.5 kg (3.3 lbs)

Hardware Upgrade

  • The Ellisys Rainbow™ engine is automatically updated with each software release  (no user intervention required)

Maintenance and Licensing

  • Free lifetime software updates – no maintenance fees
  • Free full-featured viewer software – easily share annotated traces between computers and colleagues and replay captured traffic
  • Use Ellisys hardware on any computer – no additional licenses needed

Warranty

  • Two-year limited warranty [STD and PRO]
  • Three-year limited warranty [ENT]

Ellisys reserves the right to change the features and specifications of the product without notice.

Minimum Requirements

  • Intel Core, 2 GHz or compatible processor
  • 4 GBytes of RAM
  • 1280 x 1024 display resolution with at least 65,536 colors
  • USB 2.0 EHCI host controller
  • Windows® 7 or higher
  • .net framework 4.6.1
