Ellisys Bluetooth Qualifier - Technical Data

Download the software »

System Specifications

Specifications / Radios Supported

  • Bluetooth 5, 4.2, 4.1, 4.0, and 2.1
  • Bluetooth Low Energy (LE), Basic Rate / Enhanced Data Rate (BR/EDR)

Bluetooth OTA Receive Characteristics (Lower Tester)

  • Frequency band: 2.402-2.480 GHz
  • Sensitivity range: From -90 to +15 dBm
  • Modulations: All BR/EDR/LE modulations (GFSK 1/2Mbps, p/4-DQPSK, 8-DPSK)

Bluetooth OTA Transmit Characteristics (Lower Tester)

  • Frequency band: 2.402-2.480 GHz
  • Modulations: All BR/EDR/LE modulations (GFSK 1/2Mbps, p/4-DQPSK, 8-DPSK)
  • Power: Bluetooth Class 2, 2.5mW 4dBm

HCI Capture Characteristics (Upper Tester)

  • USB transport: Low, Full, and High Speed, with automatic detection
  • UART transport: Using a UART to USB adapter

Timing

  • Clock: ±10ppm frequency accuracy over -10 to +60 degrees Celsius range

Front-Panel Indicators

  • Power: unit powered on
  • Operating: unit performing requested task
  • Activity: unit interacting with IUT

Front-Panel Connectors and Slots

  • USB: USB 2.0 Standard-A (upper tester) and Standard-B (reserved)
  • Logic: 2x10 pins (reserved)
  • SDIO: contains embedded software image for unit boot-up

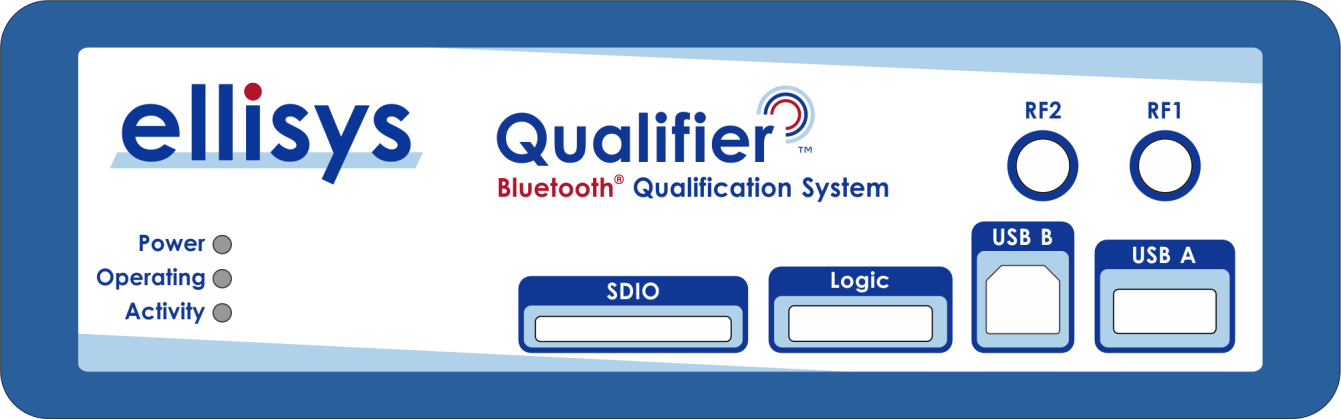

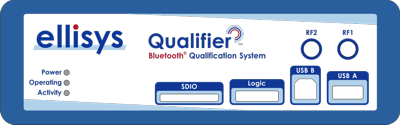

BQ1 Front

Rear-Panel Connectors

  • Computer: USB 3.1 Gen 1 Type-C
  • Ethernet: 1GbE, PoE+
  • Power: 12-24 VDC
  • Trigger: SMA in and out, 50 Ω, 3.3 VDC (reserved)
  • Clock IN: SMA, 50 Ω, 3.3VDC, 10 MHz (reserved)
  • Clock OUT: SMA, 50 Ω, 3.3VDC, 10 MHz (reserved)
  • Earth: Optional, to ground the unit

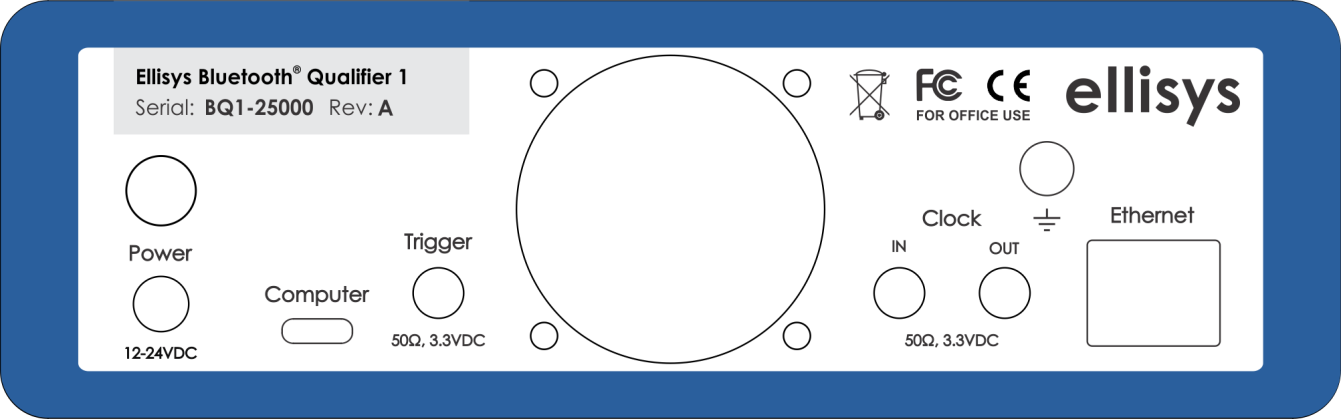

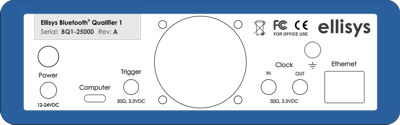

BQ1 Back

Power Inputs

  • DC input (12-24 V)
  • USB Type-C Power Delivery
  • Power-over-Ethernet (PoE+)

Power Adapter

  • Input: 100-240 VAC
  • Output: 24 VDC
  • Power: 40 W
  • Plug: 5.5 x 2.1 x 12 mm barrel straight
  • Safety: CB, TUV, UL, CCC, PSE
  • EMI: CE, FCC, VCCI, RCM

Enclosure

  • 180 x 170 x 58 mm (7.1 x 6.7 x 2.3'')
  • 1.5 kg (3.3 lbs)

Ellisys reserves the right to change the features and specifications of the product without notice.

Minimum Requirements

  • Intel Core, 2 GHz or compatible processor
  • 4 GBytes of RAM
  • 1280 x 1024 display resolution with at least 65,536 colors
  • USB 2.0 EHCI host controller
  • Windows® 7 or higher
  • .net framework 4.6.1
