USB Explorer 200 - Feature Tour

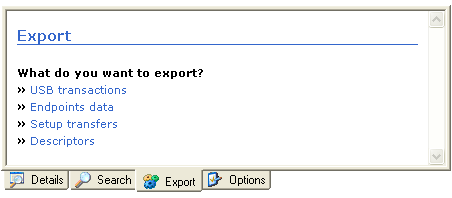

The data export view enables the export of four kinds of information in several formats

It is possible to export USB transactions, endpoints data, Setup transfers or descriptors.

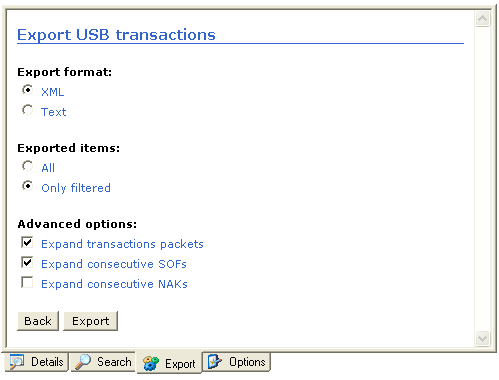

USB transactions of a record can be exported in text or in XML format

This example shows the exportation of filtered USB transactions in XML format. Packets embedded in transactions and consecutive SOFs are expanded to view all the details.

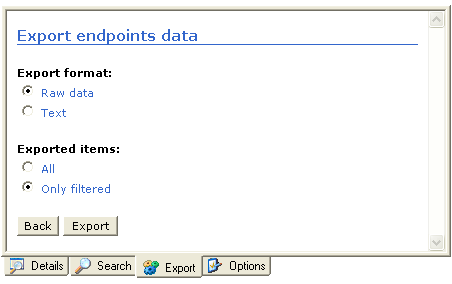

Endpoints data can be exported to a binary file or converted to text

This example shows the exportation of filtrered endpoints data to a binary file

Setup requests data can be exported to a C header file

This example shows the exportation of filtered 0xA0 Setup requests of type vendor in the direction of the device. In addition, the wValue field must match the mask 0x8FFF.

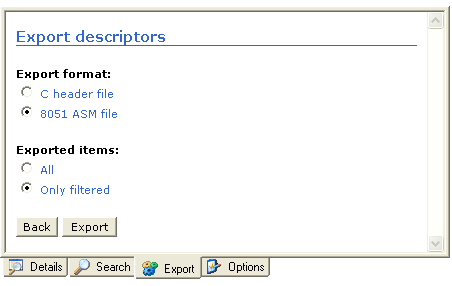

Content of descriptors can be also exported in C header or 8051 assembler format

This example shows the exportation of the content of filtered descriptors in 8051 assembler format.
